RADUS® CFS-610 | Hologram Application Machine for Security Documents | Continuous-Forms

Reliable Hologram Technology

The CFS-610 hologram applicator equipped with the HP3 hologram hot stamping head is designed to meet the highest standards in secure hologram application for pre-printed continuous forms and security-sensitive documents.

Engineered for professional B2B production environments, the system reliably processes a wide range of print-products, including business forms, tickets, vouchers, certificates, bank drafts, cheques, visas, and other documents.

N
Processing of Continuous Forms with Sprocket Holes

N

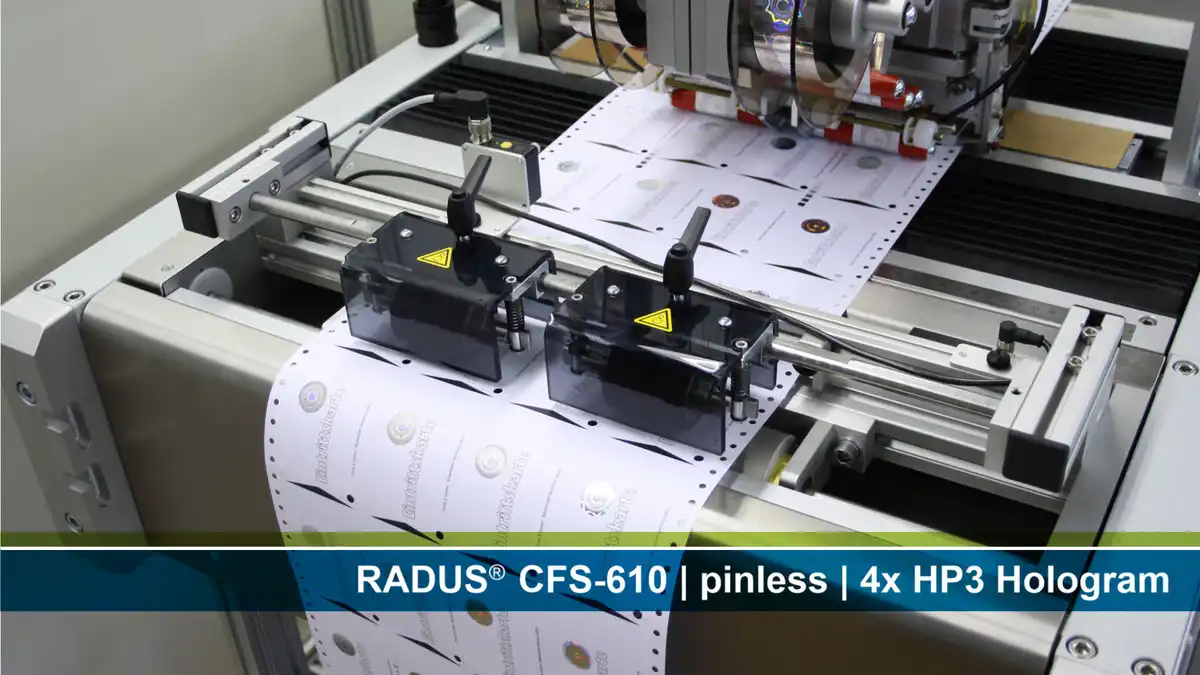

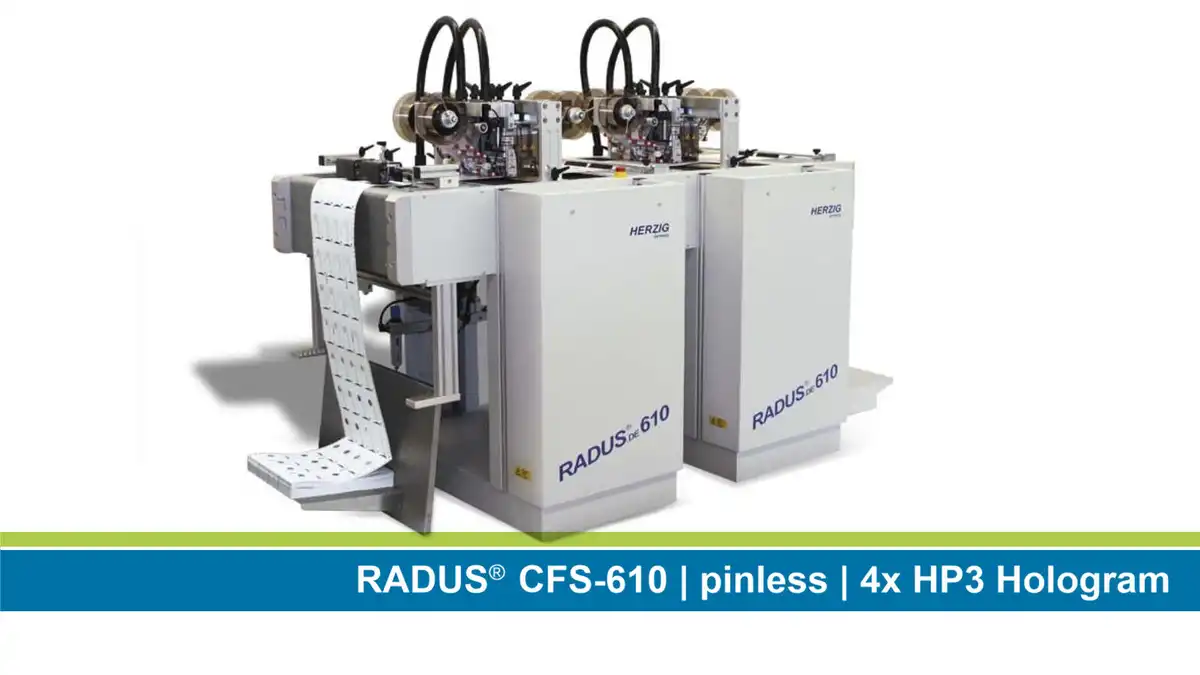

Processing of Pinless Continuous Forms (optional)

N
Basic model with 1x HP3 Hologram Head

N

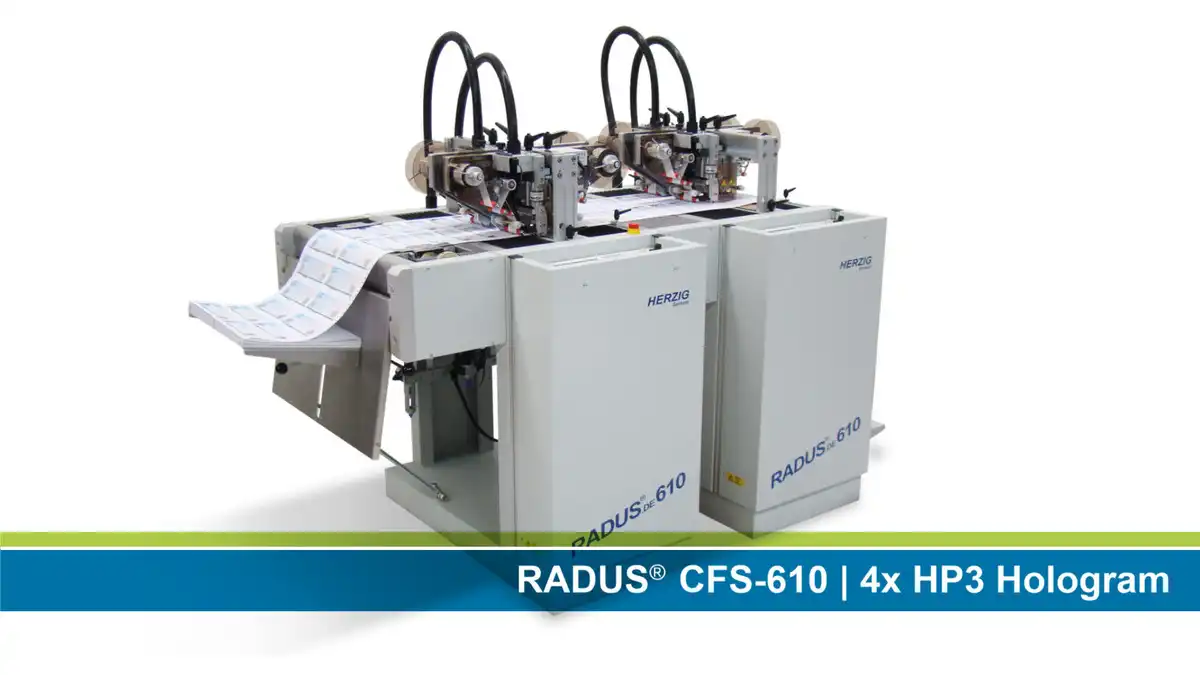

Stamping size max. ø40mm | 1 to 4 heads

N

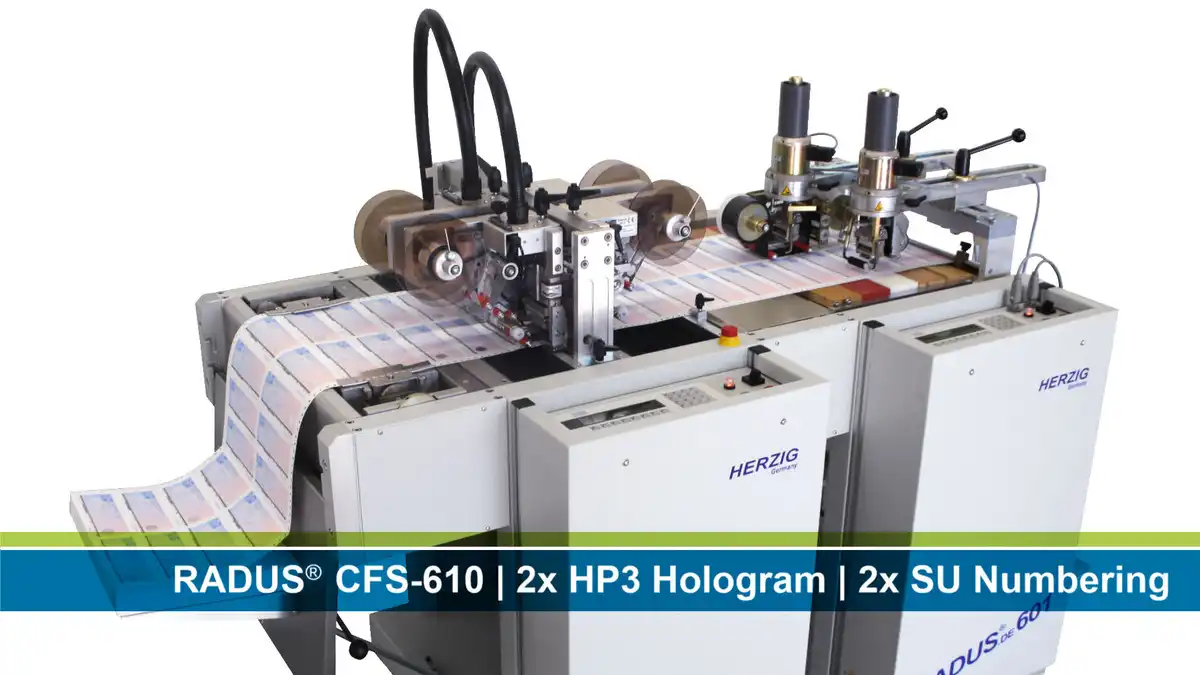

Expandability with Impact Numbering and Inkjet Stations

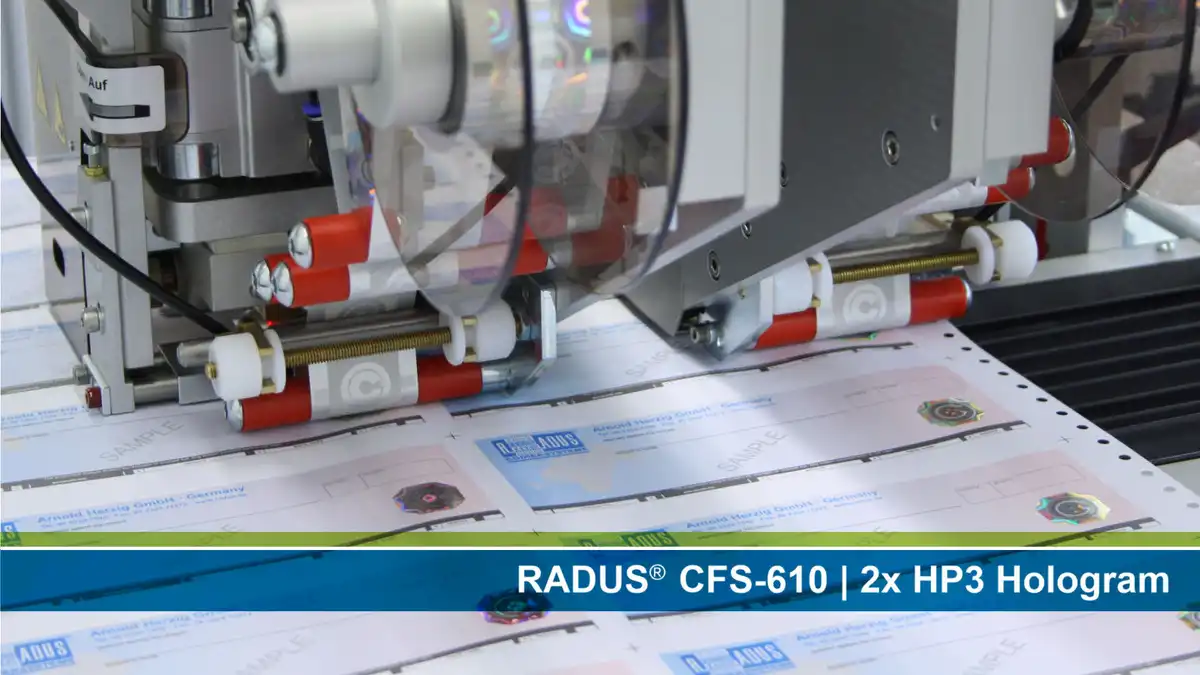

HP3 Hot Stamping Hologram Applicator

At the core of the system is the HP3 hologram application head, combining the stamping press, replaceable stamping die, precision fine adjustment, and foil feed into one highly efficient unit. The complete application system can be repositioned quickly across the paper web direction, allowing fast and accurate setup without complex die conversion or time-consuming foil tracking.

The HP3 offers exceptional flexibility for a wide range of security and branding applications. It supports the application of registered holograms, random pattern holograms, hot foil logos, and scratch-off foils with stamping areas up to 1300 mm². In addition, each stamping tool can be individually controlled, enabling highly precise and customized application processes.

Modular Platform & Scalability

Combining high productivity, fast job changeovers, and maximum application versatility, the CFS-610 with HP3 technology is the ideal solution for security printers requiring efficient, scalable, and highly reliable hologram application technology for both standard and high-security print products.

Technical Data

Model	CFS-610 HP3
Controlling	microprocessor

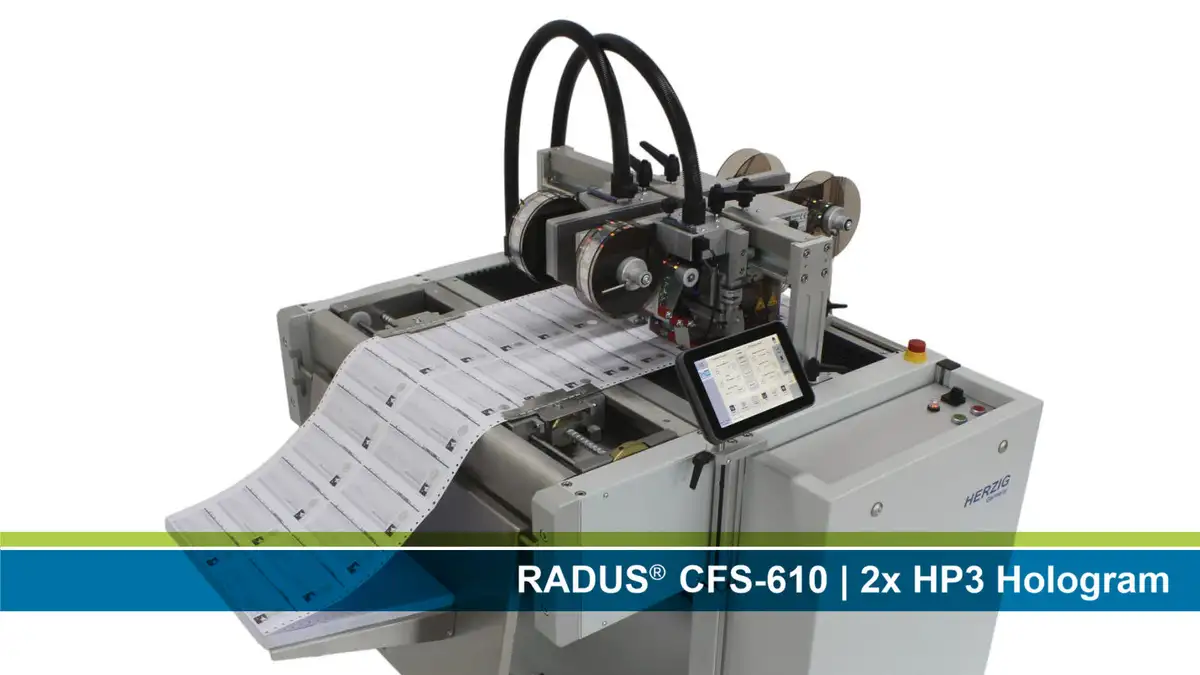

Control desk	7” touch display
Operation	fully automatic
Transport System (remaliner pinfeed)
Form width	3”-23” incl. sprocket holes cent. Adjustment
Form length	1/6” - 33” - 1/6”, 1/8”, and 1/10” feed division”
Paper weight	40- 200g/m² - form sets up to 400g/m²
Transport System (pinless)
Form width	50mm – 500mm
Form length	10mm – 800mm
Paper weight	max. approx. 400g/m²
Print mark	fork light barrier / print mark reader
Hologram Applicator HP3
Foil size	maximum 55mm width, 150mm Ø, core 1" or 3"
Stamping die	brass, steel or etched magnesium, clichés on brass carriers
Stamping size (max.)	1300mm², ø40mm, width max. 50mm
Temperature	70° to 250°C
Foil Registration	optical sensor direct at the stamping die, “on the fly positioning”
Foils	Registered security DOVIDs and holograms – metallized and demetallized, KINEGRAM®s, random pattern holographic foils, scratch foils, hot stamping foils
Foil separator	fully automated foil separation for ensuring a clean result and sharp hologram edges after the stamping / cooling process
Electrical connection	single phase 200-240V, 50/60Hz
Dimensions	length 1500mm / depth 800mm / height 1500mm
Weight	depending on configuration
Performance	• Continuous forms 12“ 1up - max. 12.500 holograms / h • Continuous forms 3“ 1up - max. 15.000 holograms / h • Continuous forms 3“ 4up - max. 60.000 holograms / h
