RADUS® SV-360 MP4 | Sheet-Fed - Industrial Solution for Variable Data Printing & Coding

Versatility. Precision. Seamless Scalability

The SV-360 MP4 is a high-performance sheet-fed system designed for professional B2B environments requiring flexibility in VDP - variable data personalization and document coding. By integrating high-resolution MP4 Thermal Inkjet (TIJ) technology, the system ensures reliable and accurate processing of paper and cardboard substrates.

Advanced Printing Capabilities

Equipped with a 600dpi MP4 inkjet head, the SV-360 delivers industrial-grade print quality for a wide range of applications, including variable texts, sequential numberings, barcodes, 2D codes, and high-resolution graphics.

N
Basic model with underfloor feeder and delivery tray

N

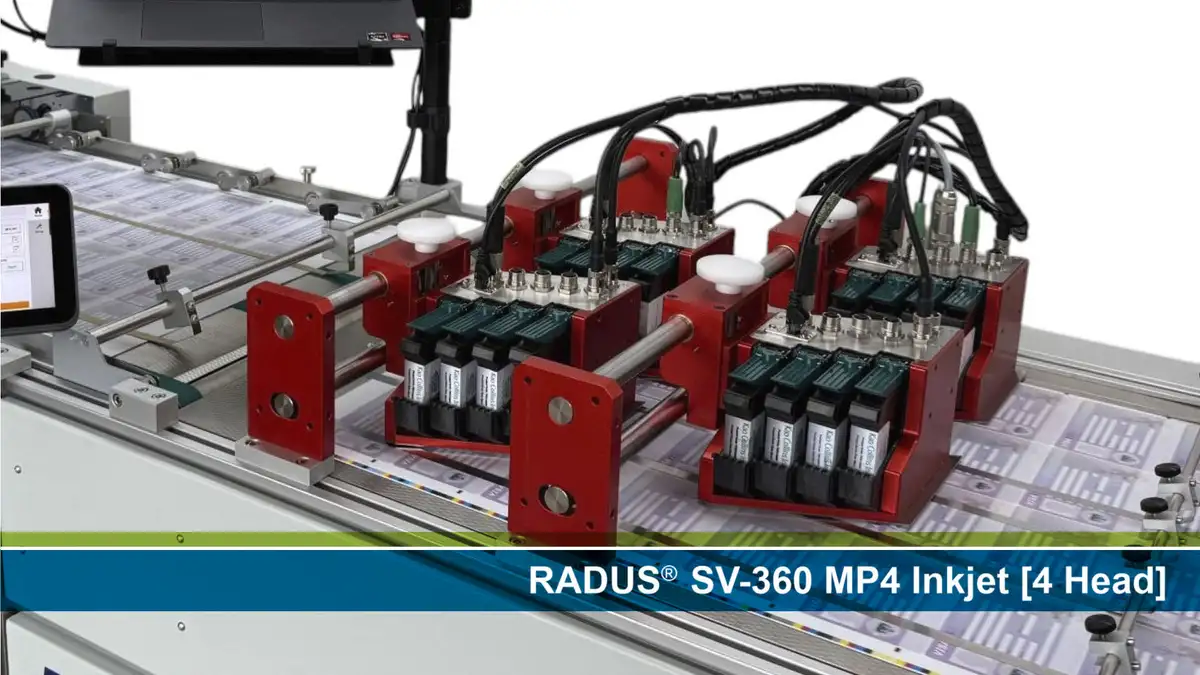

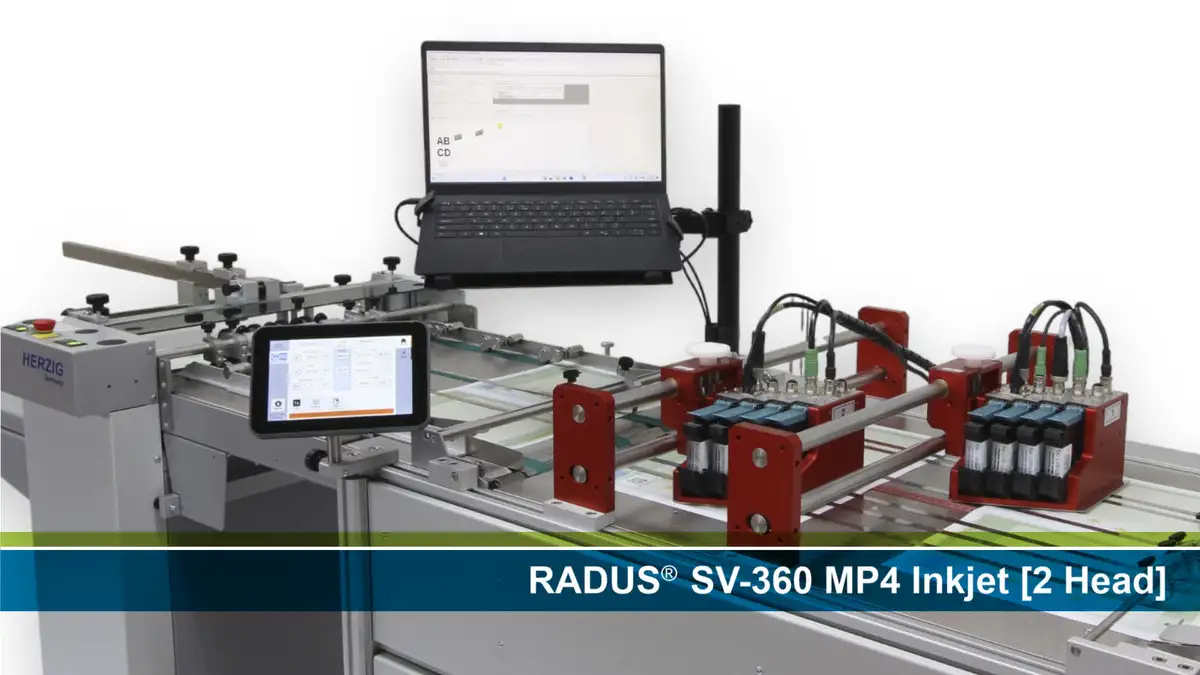

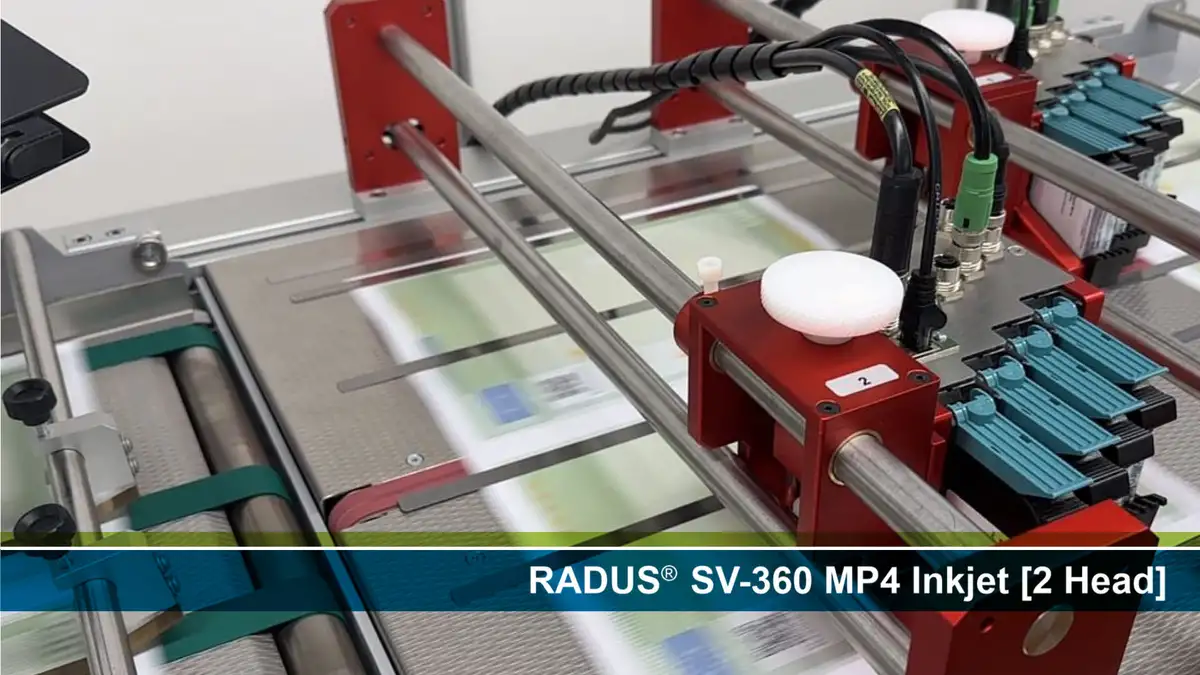

1 to 4 MP4 (4 pen) Inkjet printing heads

N
High-resolution print systems from 50.8mm to 203.2mm
N
Personalisation, variable data print, e.g. text, numbering, barcodes

N

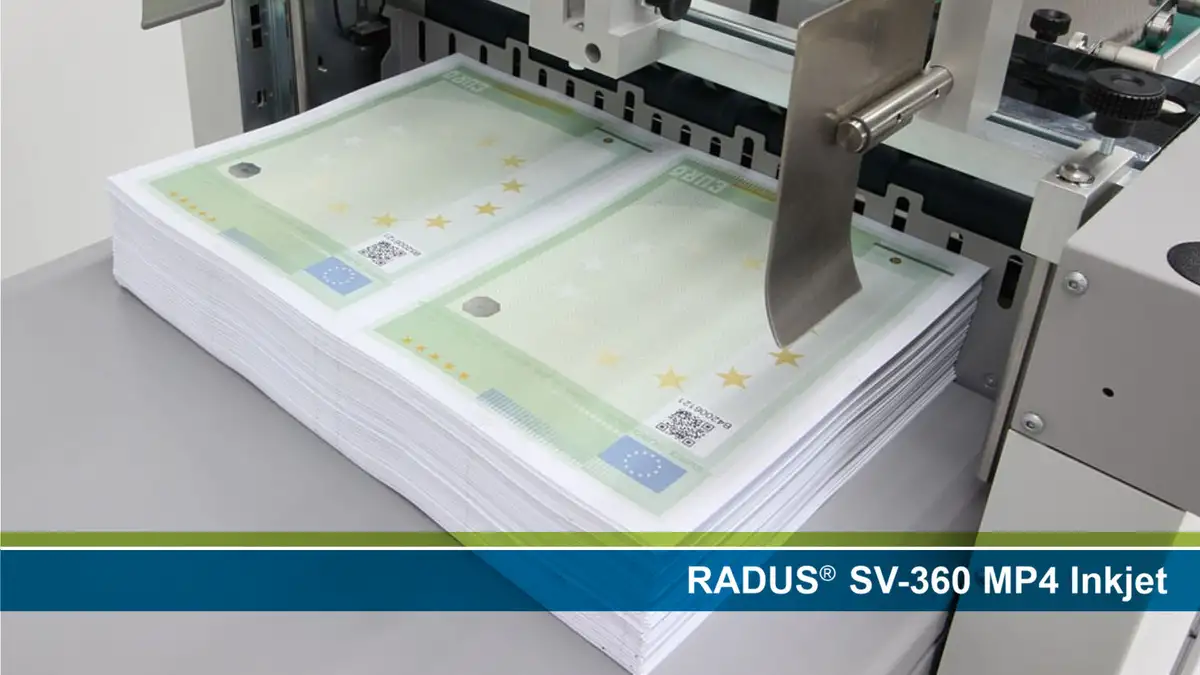

650mm high pile feeder and delivery for B2 format

N

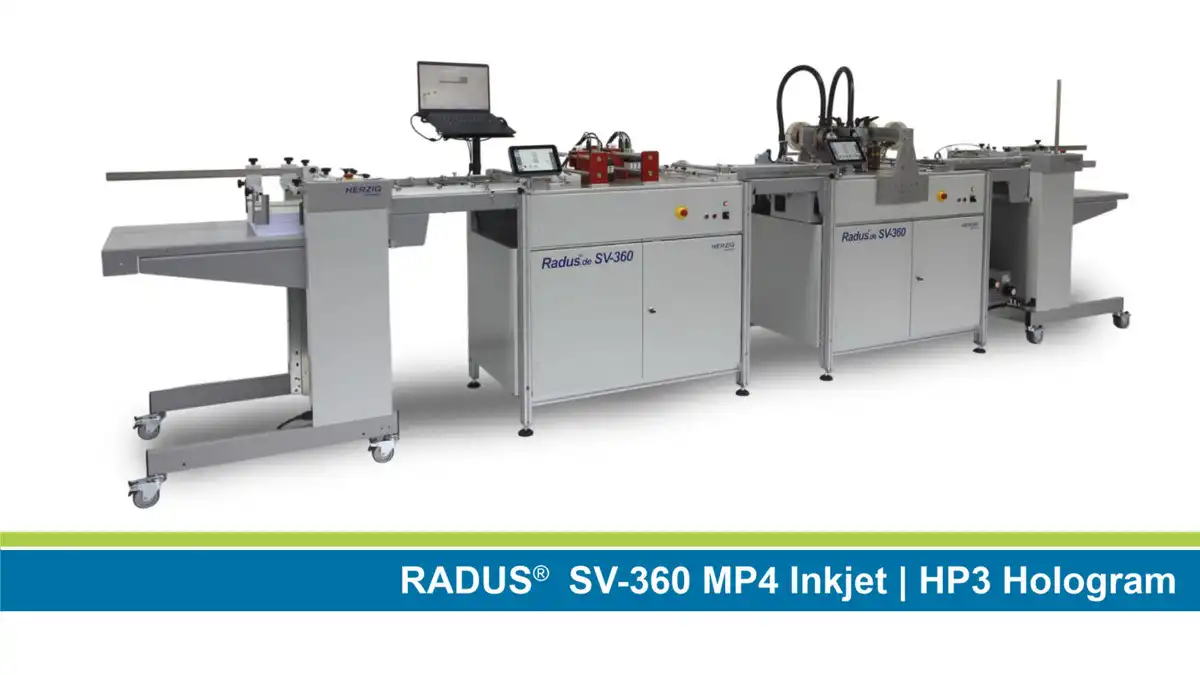

Extension Station e.g. for Hologram Application

Modular Architecture & Scalability

The SV-360 is built on a modular platform, allowing the system to be scaled in accordance with increasing production demands. The configuration can be expanded to accommodate up to four inkjet heads, providing versatile print width options from 50.8 mm up to 203.2 mm.

WYSIWYG Layout Editor

The WindowsTM based print control software has an user-friendly layout WYSIWYG editor and takes over the raster image processing of all print data. Variable content such as text, numbering and common 1D / 2D barcodes as well as graphics and logos can simply be placed via drag & drop on the layout and connected directly to the desired database field.

The Radus SV-360 MP4 Series – A modular and scalable solution for professional Inkjet "VDP" Variable Data Printing.

Technical Data

Model	SV-360 MP4 Inkjet TIJ
Controlling	microprocessor
Control desk	7” touch display
Operation	fully automatic
Transport System
Sheet length	290 - 750mm
Sheet width	120 - 520mm
Paper weight	70 - 400g/m² sheet-fed (60g/m² with pile feeder)
Print System MP	(MultiPen 4/8/16)
Print width	50.8mm (4 pen), 106.6mmm (8 pen), 203.2.mm (16 pen)
Resolution	600x600dpi, 600x300dpi, 300x300dpi
Print speed	up to 60m/min
Standard ink	cartridge TIJ 2.5 black, water based and solvent based inks as well as different colours available, UV security inks (invisible)
Curing	oxidative
Layout Editor	Windows based WYSIWYG layout designer, Database-based variable data printing of numbers and texts (Type-True Fonts), graphics, Logos 1D/2D barcodes, datamatrix, QR Code
Connections
Electrical connection	single phase 200-240 V, 50/60 Hz
Dimensions	from length 2,7m / depth 0,8m / height 1,4m
Weight	from 300kg, depending on configuration
Performance	Single sheets up to 10.000/h
