Radus® SV-360 HP3 | Modular Sheet-Fed System for Security Documents with Hologram Application

Reliable Hologram Technology

Radus has a long-standing history in the development of hologram application systems. Following the introduction of the first fully automatic sheet-fed system in 1999, Radus became the first manufacturer to officially launch a combined machine system for both sheet-fed and continuous forms in 2004. In 2010, this was followed by the Radus SV-360, a modular successor designed to meet the technical requirements of modern security printing.

N

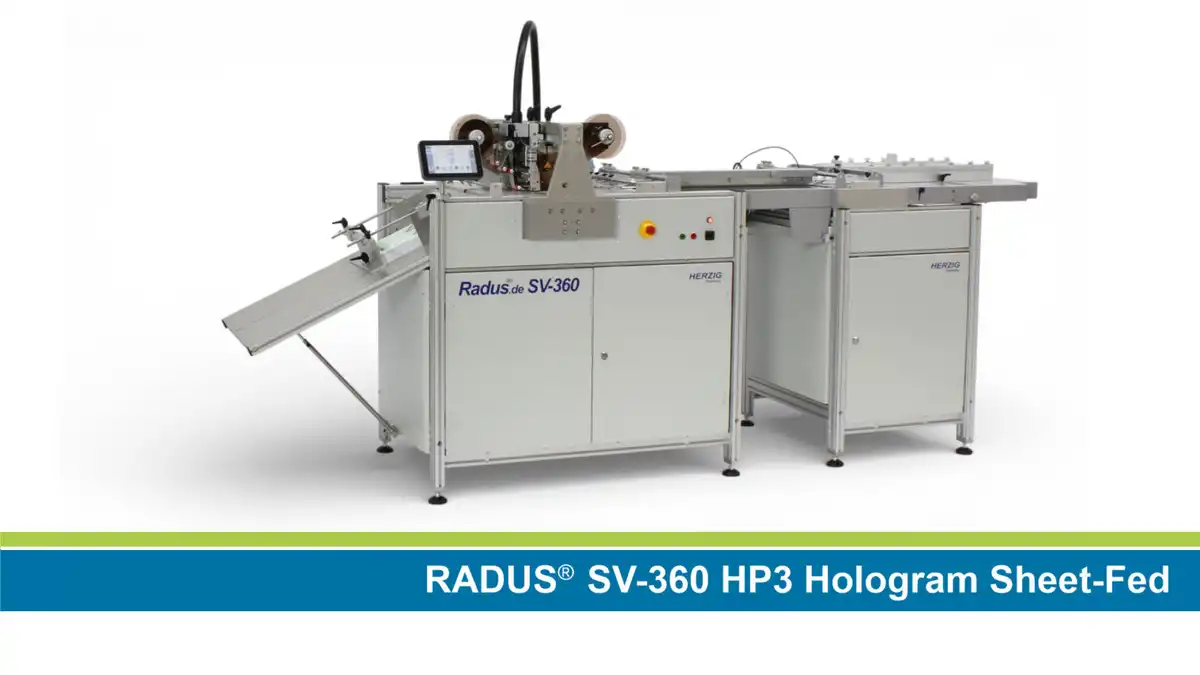

Basic model with underfloor feeder and delivery tray

N
Stamping size max. ø40mm | 1 to 8 heads

N
650mm high pile feeder and delivery for B2 format

N
Processing of sheet-fed and continuous forms

N
Extension Station with for Inkjet Printing and Security Numbering

Versatile Application Capabilities

Equipped with the high-precision HP3 hot stamping head, the SV-360 covers all standard requirements for hologram application on a wide range of documents. The system is suitable for:

N
Commercial Documents: Tickets, vouchers, bank drafts, and cheques.

N

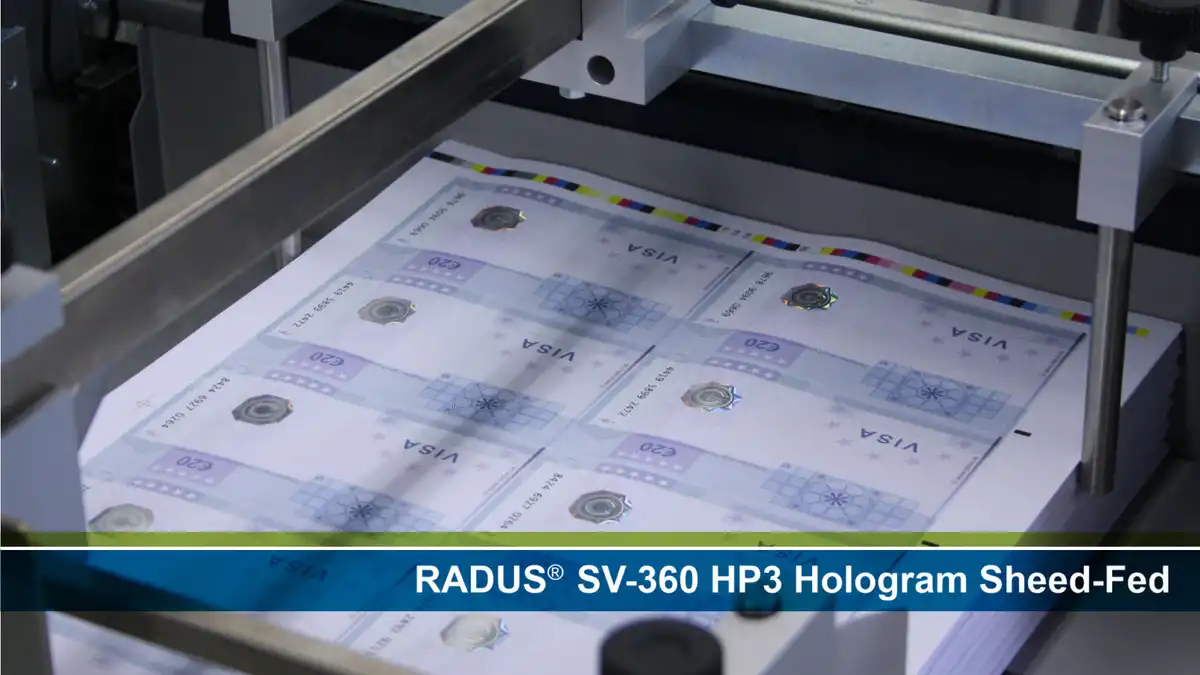

Security Documents: Visa stickers, certificates, and other paper-based documents.

The SV-360 is more than a standalone machine; it is a flexible modular platform that grows with your production requirements change. Its modular construction allows for seamless retrofitting and expansion:

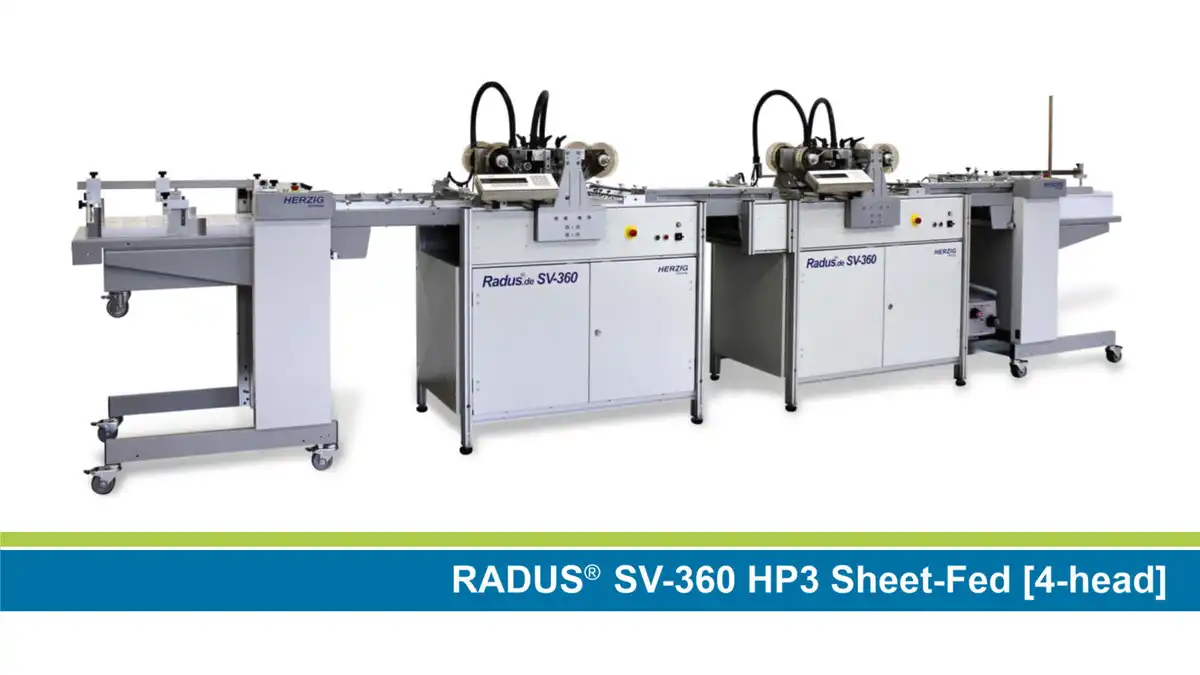

Expanded Capacity: The system can be retrofitted with up to four or eight hologram stamping heads facilitating the production of small tickets or tax labels.
Multi-Process Integration: Beyond holograms, the system can be extended with specialized modules for inkjet printing or impact security numbering, creating a comprehensive finishing line.

A key feature of the SV-360 is its ability to process different formats on a single system. Utilizing an optional tractor system (Pinless / Pinfeed), the machine can handle:

N
Sheet-Fed | individual sheets

N

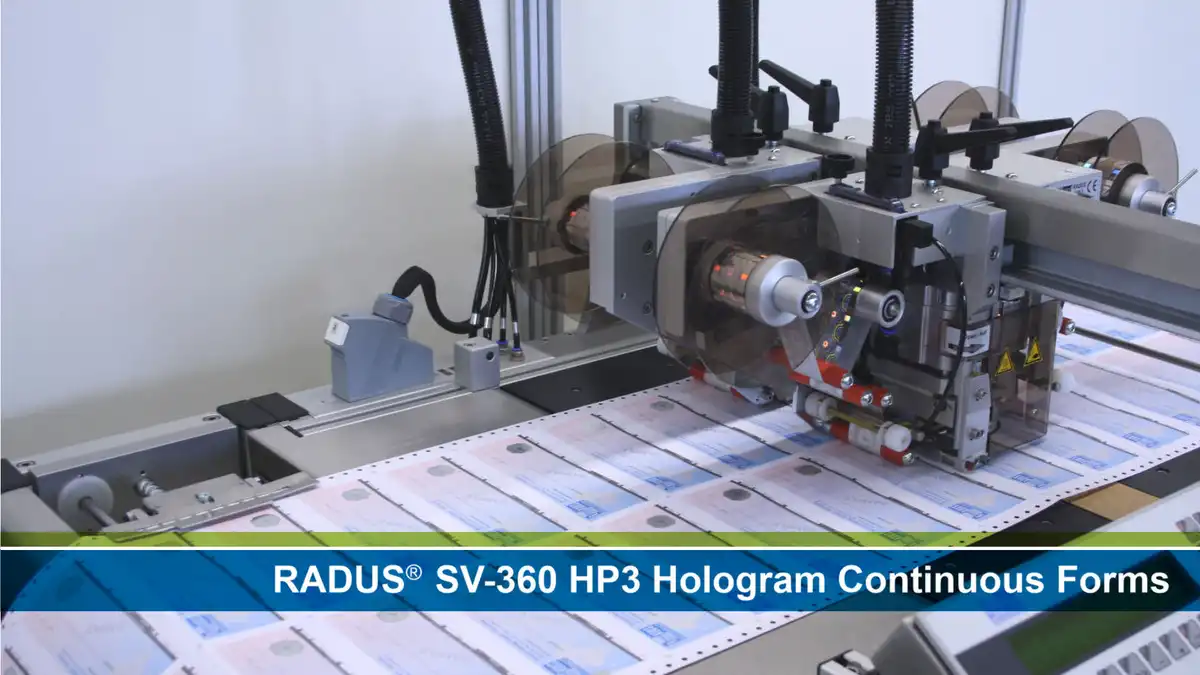

Continuous Forms

This dual-format capability provides a high degree of operational flexibility and efficiency in the processing of security documents.

The Radus SV-360 – A modular and scalable solution for professional hologram application on security documents.

Technical Data

Model	SV-360 HP3
Controlling	microprocessor
Control desk	7” touch display
Operation	fully automatic
Transport System
Form width	Sheet-Fed from 120mm up to 520mm
optional	Continuous computer forms up to 550mm incl. sprocket holes (Remaliner)
Form Length	Sheet-fed up to 650mm with flat feeder, 750mm with pile feeder
Continuous Forms	up to 33”
Paper weight	70 - 400g/m² sheet-fed (60g/m² with pile feeder) 40 - 200g/m² continuous forms
Hologram Applicator HP3
Foils	Registered security DOVIDs / holograms – metallized and demetallized, KINEGRAM, random pattern holographic foils, scratch foils, hot stamping foils
Foil size	maximum 55mm width, 150mm Ø, core 1" or 3"
Foil separator	fully automated foil separation for ensuring a clean result and sharp hologram edges after the stamping / cooling process
Foil Registration	optical sensor direct at the stamping die / „on the fly“ image positioning
Stamping die	brass, steel or etched magnesium, clichés on brass carriers
Stamping size (max.)	1300mm², ø40mm, width max. 50mm
Temperature	70° to 250°C
Electrical connection	single phase 200-240V, 50/60Hz
Dimensions	length from 2,7m / depth 0,8m / height 1,5m
Weight	depending on configuration
Performance	• 1 hologram on A4 sheet - max. 7.000 sheets/h • 32 holograms on B2 sheet 8 x 4 across - max. 50.000 holograms/h • Continuous forms 12“ 1up - max. 12.500 holograms/h • Continuous forms 3“ 1up - max. 15.000 holograms/h • Continuous forms 3“ 4up - max. 60.000 holograms
